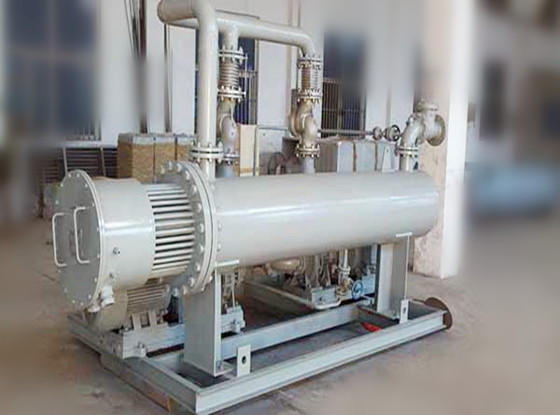

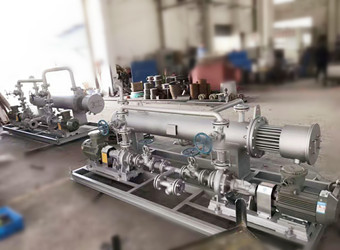

Lubrication equipment electric heater
Functional Characteristics Specification Parameter
  • Suitable for working in flammable and explosive environments, the safety protection level is not lower than d2BT4.
    Working in cold weather conditions, with faster heating and pre-lubricating performance, start the engine or work machine in time;
    Saving and cleaning engine or work machine lubricants;
    Simple operation and fuel saving;
  • Rated voltage:220V、380V
    Nominal power:3kw~2000kw
    Explosion-proof grade:ExdⅡBT1-4
    Temperature control method:Automatic temperature control
    Temperature control accuracy:±1℃

The system sucks the lubricating oil from the oil tank through the oil pump, and sends it into the electric heating oil tank for heating. The heated lubricating oil passes through the oil filter to filter the lubricating oil, and the cleaned and filtered clean lubricating oil passes through. The pipeline pre-lubricates or continuously lubricates the friction pairs of the engine or working machine.
      The system is equipped with automatic control, emergency stop and electrical automatic protection, and the indicator shows the running status of the whole system.
